Electrical Strength Tester For Insulation Materials

Name: Electrical Strength Tester For Insulation Materials
Brand: DONGGUAN DAXIAN INSTRUMENT EQUIPMENT CO.,LTD
Price: 8.00 USD
Availability: InStock

همه محصولات

تست تجهیزات آتش نشانی
(287)

تجهیزات تست اشتعال پذیری
(134)

تجهیزات تست مواد ساختمانی
(64)

Lab Testing Machine
(76)

Insulation Testing Machine
(110)

تجهیزات تست پلاستیک
(131)

تجهیزات تست لاستیکی
(100)

تجهیزات تست سیم
(240)

دستگاه تست PCB
(5)

دستگاه تست مقاوم در برابر آتش
(13)

اتاق آزمایش محیط زیست
(61)

اتاق تراکم دود
(14)

دستگاه تست کشش
(22)

ماسک تستر
(42)

اسباب بازی تست تجهیزات
(18)

متر لیزر
(10)

تجهیزات اتوماسیون صنعتی
(45)

گواهی

نظرات مشتریان

قبل از خرید دستگاه، من می بینم که شریک ما از دستگاه شما استفاده می کند، پس از دریافت آن، همه چیز خوب است. ممنون، امیدوارم دفعه بعد هم توافق کنی

—— حداکثر خواهد بود

در ابتدا من در مورد اینکه آیا شرکت شما می تواند در زمان تحویل، نگران باشید، به نظر می رسد شرکت شما خوب است، بدون تاخیر

—— پیتر هوانگ

همکاری خوب! ما برای پشتیبانی نوعی شرکت در پروژه هایمان قدردانی کردیم. خدمات بسیار خوب

—— آقای حسین

نقل قول حرفه ای، فن آوری حرفه ای، به طوری که ما دریافت کالا به موقع، شرکت های قابل اعتماد. امیدوارم که ما هنوز هم می تواند همکاری دفعه بعد!

—— <html> <head> <meta name="robots" content="noarchive" /> <meta name="googlebot" content="nosnippe

چت IM آنلاین در حال حاضر

Electrical Strength Tester For Insulation Materials

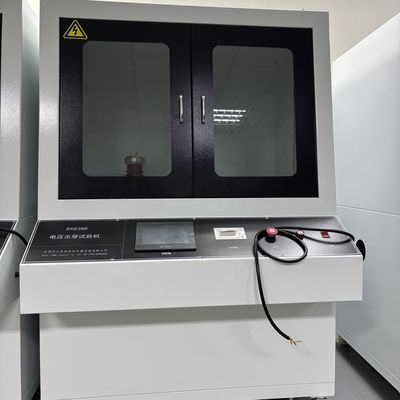

تصویر بزرگ : Electrical Strength Tester For Insulation Materials

جزئیات محصول: پرداخت:

قیمت:	CN¥16,428.67/boxes >=1 boxes

مخاطب

Electrical Strength Tester For Insulation Materials

شرح

تضمین:	1 سال	پشتیبانی سفارشی:	OEM، ODM، OBM، مهندسی مجدد نرم افزار
محل اصلی:	گوانگدونگ، چین	brand name:	DAXIAN
قدرت:	5KVA	دقت:	≤ 5%
ولتاژ:	۲۲۰ ولت	نوع:	دستگاه تست
کلاس حفاظت:	IP67	وزن:	200 کیلو
ولتاژ تست:	AC/DC 0-50 کیلو ولت به طور مداوم قابل تنظیم است	ظرفیت ترانسفورماتور:	10 کیلو ولت آمپر
دقت اندازه گیری ولتاژ:	≤ 5%	روش های امتحان:	تست DC ، تست AC
ولتاژ شکست:	0-50 کیلو ولت	تنظیم سرعت:	برای تنظیم سرعت اتوماتیک الکتریکی
انتخاب فعلی نشت:	1-20 میلی آمپر	فرکانس برق:	موج سینوسی 50 هرتز
قدرت:	الکترونیکی
برجسته کردن:	Electrical Strength Tester,Insulation Materials Strength Tester,Insulation Materials Electrical Strength Tester , Insulation Materials Strength Tester , Insulation Materials Electrical Strength Tester

Company Profile

DAXIAN INTERNATIONAL EQUIPMENT CO., LTD is Located in Dongguan City, Guangdong Province, China, we are a high tech enterpris which is specialized in development and manufacturing, The most professional OEM manufacturer in the country,we mainly produce Fire Testing Equipment, Construction Materials Testing Equipment, Plastic Testing Equipment, Wire Testing Equipment, Environmental Test Chamber, Tensile Testing Machine, and others DAXIAN's testing equipment is widely used in various fields: scientific institutions, colleges, inspection institutions, auto parts, electronics, electronics, LEDs, photoelectricity, mobile, plastic rubber, telecommunications, chemical industry, aerospace, building materials and products, wire and cable, textile and fabric, etc
. All DAXIAN testing equipment is designed according to international test standards, such as ISO, ASTM, DIN, EN, GB, BS, JIS, UL, TAPPI, AATCC, IEC, VDE, CSA, CEN, and so on

Products Description

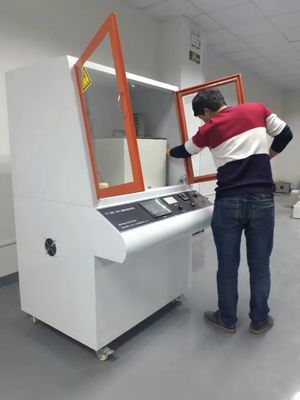

Customer Photos

Specification

Item	Value
Warranty	1 YEAR
Customized support	OEM, ODM, OBM, Software reengineering
Place of Origin	China
	Guangdong
Brand Name	DAXIAN
Model Number	DX8413
Power	Electronic
External dimensions	800 l W700 1350mm h
Electrode weight	50G
Electrode	Electrode weight
Input voltage	AC 220 V
Test method	Test methodTest method5,
Electrical capacity:	1.5 KVA
Test current:	10MA-20MA-30MA-40MA optional
Current control accuracy	± 10%
Arc on/off time error:	<5ms

Equipment standard: 1. GB1408.1-2006 "Test Methods for Electrical Strength of Insulation Materials" 2. GB1408.2-2006 "Test Methods for Electrical Strength of Insulation Materials Part 2: Additional Requirements for Application of DC Voltage Test 3. GB/T1695-2005 "Determination method for power frequency breakdown voltage strength and withstand voltage of vulcanized rubber" 4. ASTM D149 "Test Method for Dielectric Breakdown Voltage and Dielectric Strength of Solid Electrical Insulation Materials at Industrial Power Supply Frequency"

product overview： This testing machine is suitable for measuring the breakdown strength and withstand time of solid insulation materials such as plastics, films, resins, mica, ceramics, silicone, glass, insulation paints, etc. in air or liquid media at power frequency (48-62Hz) or corresponding DC voltage.

Scope of application: Suitable for continuous and uniform voltage boosting or step-by-step voltage boosting, apply AC/DC voltage to the sample until breakdown, measure the breakdown voltage value, and calculate the breakdown strength of the sample; Using a rapid voltage boost method, raise the voltage to the specified value and maintain it for a certain period of time until the sample does not break down. Set the specified value at this time as the withstand voltage value of the sample.

Main technical parameters of the instrument: 1. Test voltage: AC 0~50 kV continuously adjustable DC 0~50 kV continuously adjustable 2. Transformer capacity: 10 KVA 3. Breakdown voltage: 0~50kV 4. Boosting speed: divided into 10 gears: 50, 100, 200, 500, 1000, 2000 (KV/S) 5. Boost speed regulation: for electrical automatic speed regulation 6. Voltage measurement accuracy: ≤ 5％ 7. Leakage current selection: 1-20 mA 8. Test methods: DC test, AC test 9. Boosting method: automatic programmable boosting 10. Power frequency: 50Hz sine wave 11. Power supply: AC220V 50/60Hz 12. External dimensions: L 1400* W 1040* H 1500 mm 13. Weight: 200KG

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Selection of Packaging Materials： Selection of Packaging Materials 1. Use sturdy and durable packaging boxes to prevent equipment
damage caused by collision or compression during transportation. 2. The interior is filled with shockproof materials, such as
foam, air cushion or pearl cotton, to ensure that the equipment will not shake in the packaging box. 3. For fragile or sensitive
components (such as electrodes, display screens, etc.), package and secure them separately to avoid damage during transportation.
Mode of Transport： 1. Prioritize choosing professional logistics and transportation companies to ensure safety and reliability
during transportation. 2. For long-distance transportation, land or sea transportation should be used to avoid the potential
impact of air pressure changes on equipment during air transportation.

FAQ

Q:Are you factory or trading company?
A:We are factory in Dongguan City, Guangdong Province,China.Near Shenzhen or Guangzhou.

Q:What kind of certificate you have?

A:ISO9001 Certification, CE Certification.

Q:What is the lead time of the product?
A: Generally 7-15 days after getting the deposit.

Q:How about the payment term?
A: T/T, by cash, western union, or L/C.

Q:How about the warranty term?
A:1 year warranty,The engineer can teach the machine on the spot.
