DX8488 Insulation Material Volume Resistance (Surface Resistance) Tester

گواهی
چین DONGGUAN DAXIAN INSTRUMENT EQUIPMENT CO.,LTD گواهینامه ها
چین DONGGUAN DAXIAN INSTRUMENT EQUIPMENT CO.,LTD گواهینامه ها
نظرات مشتریان
قبل از خرید دستگاه، من می بینم که شریک ما از دستگاه شما استفاده می کند، پس از دریافت آن، همه چیز خوب است. ممنون، امیدوارم دفعه بعد هم توافق کنی

—— حداکثر خواهد بود

در ابتدا من در مورد اینکه آیا شرکت شما می تواند در زمان تحویل، نگران باشید، به نظر می رسد شرکت شما خوب است، بدون تاخیر

—— پیتر هوانگ

همکاری خوب! ما برای پشتیبانی نوعی شرکت در پروژه هایمان قدردانی کردیم. خدمات بسیار خوب

—— آقای حسین

نقل قول حرفه ای، فن آوری حرفه ای، به طوری که ما دریافت کالا به موقع، شرکت های قابل اعتماد. امیدوارم که ما هنوز هم می تواند همکاری دفعه بعد!

—— <html> <head> <meta name="robots" content="noarchive" /> <meta name="googlebot" content="nosnippe

چت IM آنلاین در حال حاضر

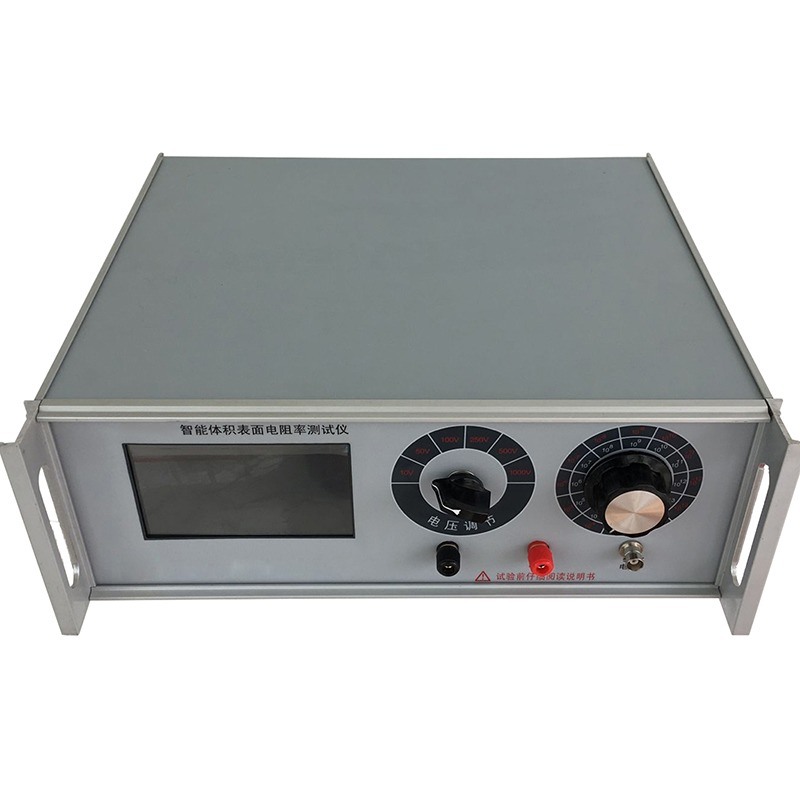

DX8488 Insulation Material Volume Resistance (Surface Resistance) Tester

DX8488 Insulation Material Volume Resistance (Surface Resistance) Tester
DX8488 Insulation Material Volume Resistance (Surface Resistance) Tester

تصویر بزرگ :  DX8488 Insulation Material Volume Resistance (Surface Resistance) Tester

جزئیات محصول:
محل منبع: گوانگدونگ، چین
نام تجاری: DAXIAN
شماره مدل: DX8488
پرداخت:
مقدار حداقل تعداد سفارش: 1
قیمت: $200

DX8488 Insulation Material Volume Resistance (Surface Resistance) Tester

شرح
پشتیبانی سفارشی: OEM ، ODM ، OBM ، مهندسی مجدد نرم افزار گارانتی: 1 سال
تنظیم زمان: 0~99s قابل تنظیم محدوده اندازه گیری مقاومت:: 0-2 10E17Ω. مگس
ولتاژ اندازه گیری: 10V ، 25V ، 50V ، 100V ، 250V ، 500V ، 1000V استانداردها: ASTM D257-2007
وزن: 15 کیلوگرم ابعاد خارجی: 500 350 250 (میلی متر
منبع تغذیه: AC220V 50Hz
برجسته کردن:

insulation material resistance tester,surface resistance testing machine,lab volume resistance tester

,

surface resistance testing machine

,

lab volume resistance tester

Suitable for measuring the insulation resistance of high resistance insulation materials, electrical products, various components, rubber and plastic used in wires and cables. The optional electrode box can measure the surface resistance and volume resistance of insulation materials.

Complies with the standards ASTM D257-2007 Volume Resistivity and GBT 1410-2006 Test Methods for Material Volume Resistivity and Surface Resistivity.

Main technical specification :

Measurement voltage: 10V, 25V, 50V, 100V (8500-9000), 250V, 500V, 1000V (1.3-1.4) optional

Resistance measurement range: 0-2×10e17Ω. m

Time setting: 0~99S adjustable

Power supply: AC220V 50HZ

External dimensions: 500×three hundred and fifty×250 (mm)

Weight: 15kg



DX8488 Insulation Material Volume Resistance (Surface Resistance) Tester 0





Volume resistance/surface resistance test electrode

(1) Back electrode (2) Inner electrode (3) Circular outer electrode (4) Tested sample





















Our Services

1. Ensure the high quality of the product.

2. Packaging can be done according to customer requirements and pictures can be attached before shipment.

3. Transport professional documents

4. Provide professional product consultation before sales, and we guarantee to answer any professional technical questions you may have within 48 hours; Provide timely product technical services after sales, and provide solutions within three working days.

5. Our engineers provide professional after-sales service

6. The warranty period is 12 months. During the warranty period, we are responsible for providing free maintenance, upkeep, and replacement of damaged and defective parts (under normal use) for the user's equipment. After the free warranty ends, service fees will be charged at your discretion.

7. Provide the fastest response to maintenance and assistance requests from users. After the user submits a maintenance request, ensure to provide professional technical support in the shortest possible time and in the fastest way possible.



DX8488 Insulation Material Volume Resistance (Surface Resistance) Tester 2
